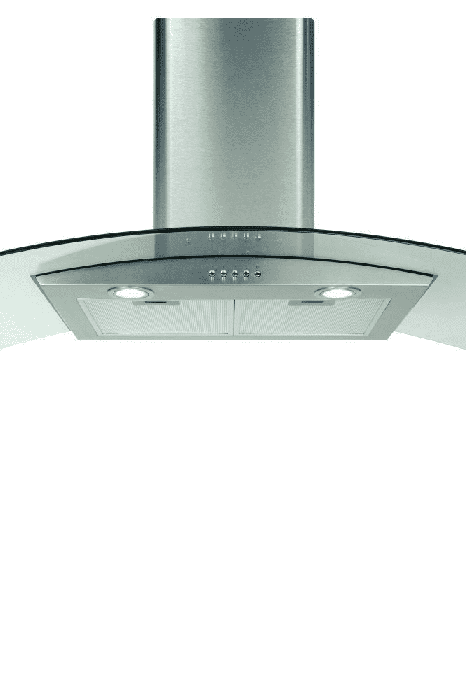

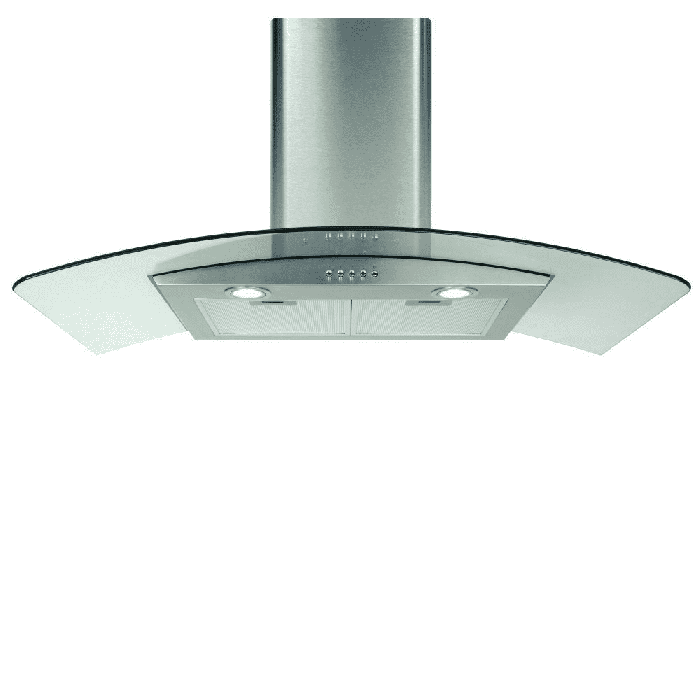

CDA 90cm Curved Glass Chimney Extractor - Stainless Steel

CDA 90cm Curved Glass Chimney Extractor - Stainless Steel

Regular price £249.00 GBP
Regular price Sale price £249.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

  • 3-7 Working days £25 Or Free Over £500
  • 30-Day Satisfaction Guarantee
  • Full Manufacturer Warranty Included
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Genuine UK Products

Manufacturer Direct Fulfilment

Full Manufacturer Warranties Included

30-Day Satisfaction Guarantee

Secure Payments

Dedicated UK Support

No Hidden Costs

The CDA ECP92SS 90cm curved glass extractor delivers maximum coverage with curved glass styling in stainless steel. The generous 90cm width is ideal for large hobs and range cookers, ensuring complete capture of steam and cooking odours.

Three speed settings, LED lighting, and dishwasher-safe aluminium filters provide reliable performance. The wide curved glass canopy creates a dramatic focal point while efficiently channelling steam toward the extraction point.

Designed for wall-mounted installation with ducted or recirculating options, the ECP92SS is a premium CDA curved glass hood for UK kitchens with 90cm hobs or range cookers.

Technical Specification

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

  • Extraction rate: 377 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at first speed: 224 m³/hr
  • Extraction rate at second speed: 315 m³/hr
  • Extraction rate at third speed: 377 m³/hr
  • Noise level at first speed: 51 dBA
  • Noise level at second speed: 58 dBA
  • Noise level at third speed: 60 dBA

Filters

  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

  • WEEE Category: 01
