Hoods & Extractors

Extraction

• High-capacity extraction motor
• Multiple speed settings
• Ducted or recirculating operation

Filters & Design

• Dishwasher-safe metal grease filters
• Bright LED strip lighting
• Electronic push-button controls
• Bertazzoni Professional Italian design
• Premium stainless steel finish

Extraction

• Up to 620 m3/h extraction rate
• 3 speeds + intensive setting
• Ducted or recirculating operation

Filters

• Dishwasher-safe metal grease filters

Design

• Bright LED lighting
• Simple push-button controls
• Wall-mounted T-shape chimney
• Premium stainless steel finish

Product Specifications

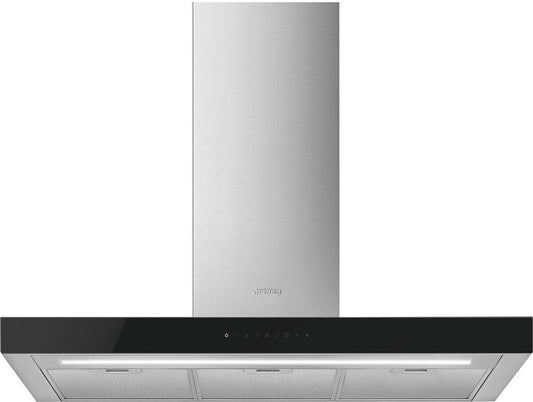

Model: KBT9L4VN

Colour/Finish: Black glass and stainless steel

Version: 3 speeds plus intensive speed

Ventilation Type: Expulsion extraction

Auto-Vent 2.0: Automatically connects to enabled Smeg hobs

Air Filter Function: 24-hour air filter operation

Time Setting Options: Yes

Control Type: Touch control

Lighting Type: 1 LED

Extraction Rate: 705 m³/h

Hood Filter Included: 3 x aluminium grease filters

Sound Level: 72 dB

Air Outlet Diameter: 150 mm

Wattage: 230 W

Warranty/Guarantee: 2 years (Smeg 2-year labour, 2-year parts warranty)

Product Specifications

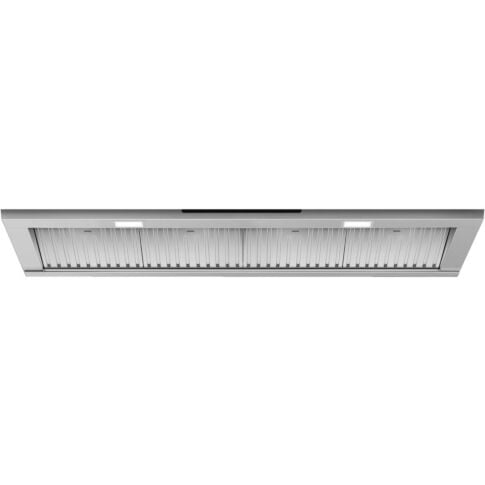

Model: KSGT124X

Colour/Finish: Stainless steel

Control Type: Touch control

Extraction Rate: 820 m³/hr

Lighting Type: 2 LED

Hood Filter Included: 4 x aluminium grease filters

Sound Level: 67 dB

Air Outlet Diameter: 150 mm

Wattage: 275 W

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2 years

Product Specifications

Model: KV394MB

Colour/Finish: Matt black

Version: 3 speeds plus intensive speed

Auto-Vent Feature: Yes

Filter Replacement Indicator: Yes

Ventilation Type: Recirculation

Extractor Hood Light Type: 2 LED

Control Type: Touch control

Extraction Rate: 729 m³/hr

Hood Filter Included: 2 x stainless steel grease filters

Sound Level: 69 dB

Air Outlet Diameter: 150 mm

Wattage: 230 W

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2 years

Product Specifications

Energy Efficiency Class: A+ (A+++-D scale)

Ventilation Type: Extraction/Recirculation (depending on setup)

Lighting: Integrated LED (optional configuration)

Warranty/Guarantee: 2 years

Product Specifications

Model: KV28N

Colour/Finish: Black glass with stainless steel trim

Energy Efficiency Class: A (A+++-D scale)

Ventilation Type: Extraction/Recirculation (depending on installation)

Lighting: Integrated LED (optional configuration)

Warranty/Guarantee: 2 years

Product Specifications

Model: KI90XE

Finish: Stainless steel

Energy Efficiency Class: B (A+++-D scale)

Speed Settings: 3 + Intensive

Ventilation Type: Recirculation

Lighting: 4 x 1W LED lights

Control Type: Push button

Motor Power: 275 W

Extraction Rate: 820 m³/h (free outlet maximum capacity)

Filters: 3 x Aluminium grease filters

Noise Level: 63 dB

Air Outlet Diameter: 150 mm

Input Voltage: 220 – 240 V

Frequency: 50 Hz

Nominal Power: 280 W

Additional Features: Non-return valve, internal recirculation, and intensive speed function

Warranty/Guarantee: 2 years

Product Specifications

Model: KBT700XE

Colour/Finish: Stainless steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 3 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 230 W

Input Voltage: 220 – 240 V

Frequency: 50 Hz

Nominal Output: 2.72 kW

Energy Efficiency Class: A (A+++-D scale)

Product Specifications

Material: Steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 3 x Stainless steel grease filters

Air Outlet Diameter: 150 mm

Wattage: 275 W

Nominal Output: 2.78 kW

Energy Efficiency Class: A+ (A+++-D scale)

Warranty/Guarantee: 5 years

Boost Mode: Yes – for rapid smoke and odour clearance

Minimum Clearance Required:

• Electric hobs: 650 mm

• Gas hobs: 750 mm


Product Specifications

Width: 1,100.00 mm

Speed Settings: 3

Ventilation Type: Recirculation

Control Type: Touch control

Lighting: 2 LED lights

Filters: 3 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 275 W

Nominal Output: 2.78 kW

Energy Efficiency Class: B (A+++-D scale)

Product Specifications

Model: KD100HXE

Colour/Finish: Stainless steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 3 x Stainless steel grease filters

Air Outlet Diameter: 150 mm

Wattage: 275 W

Nominal Output: 2.77 kW

Energy Efficiency Class: A+ (A+++-D scale)

Product Specifications

Model: KSED75XE

Colour/Finish: Stainless steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 200 W

Nominal Output: 2.40 kW

Energy Efficiency Class: C (A+++-D scale)

Product Specifications

Colour/Finish: Black glass

Air Outlet Diameter: 150 mm

Energy Efficiency Class: A+ (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Model: KD61XE2

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 140 W

Nominal Output: 1.48 kW

Energy Efficiency Class: D (A+++-D scale)

Installation Notes: Minimum clearance required when installing above – Electric hobs: 500 mm / Gas hobs: 650 mm

Product Specifications

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 4 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 275 W

Nominal Output: 2.78 kW

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Speed Settings: 3 + Intensive speed

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 230 W

Nominal Output: 2.02 kW

Input Voltage: 220–240 V

Frequency: 50 Hz

Annual Energy Consumption: 53 kWh/year

Non-Return Valve: Yes

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Speed Settings: 3 + Intensive speed

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 230 W

Nominal Output: 2.02 kW

Input Voltage: 220–240 V

Frequency: 50 Hz

Annual Energy Consumption: 53 kWh/year

Non-Return Valve: Yes

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Model: KSED95XE

Colour/Finish: Stainless steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 Halogen lights

Filters: 3 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 200 W

Nominal Output: 2.40 kW

Energy Efficiency Class: C (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Model: KD90HXE

Colour/Finish: Stainless steel

Speed Settings: 3

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 3 x Stainless steel grease filters

Air Outlet Diameter: 150 mm

Wattage: 275 W

Nominal Output: 2.78 kW

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Model: KSG8P4X

Colour/Finish: Stainless steel

Control Type: Touch control

Extraction Rate: 730 m³/h

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Sound Level: 67 dB

Air Outlet Diameter: 150 mm

Wattage: 230 W

Energy Efficiency Class: A (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

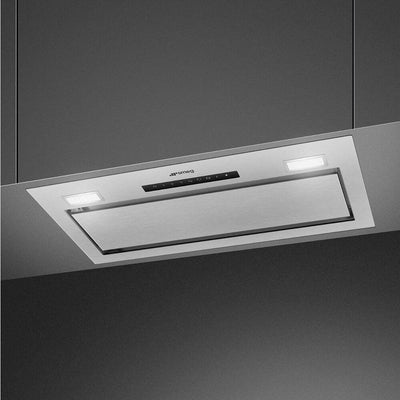

Model: KSG6P4X

Colour/Finish: Stainless steel

Control Type: Touch control

Extraction Rate: 730 m³/h

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Sound Level: 67 dB

Air Outlet Diameter: 150 mm

Wattage: 230 W

Energy Efficiency Class: B (A+++-D scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

Width: 899.00 mm

Speed Settings: 3 + Intensive

Ventilation Type: Recirculation

Lighting: 2 LED lights

Filters: 2 x Aluminium grease filters

Air Outlet Diameter: 150 mm

Wattage: 230.00 W

Input Voltage: 220 – 240 V

Frequency: 50 Hz

Nominal Output: 2.30 kW

Non-Return Valve: Yes

Annual Energy Consumption (AEChood): 54 kWh/year

Energy Efficiency Class: A (A–G scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Product Specifications

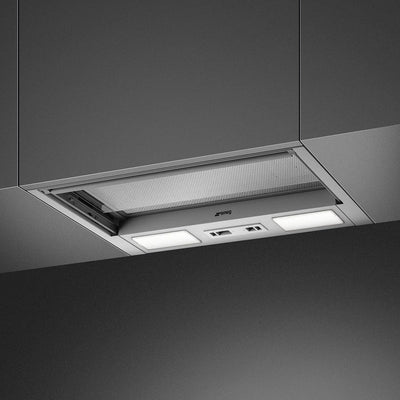

Model: KSET56LX3

Colour/Finish: Brushed stainless steel

Speed Settings: 3

Extraction Rate: 225 m³/h

Sound Level: 47 dB

Air Outlet Diameter: 120 mm

Energy Efficiency Class: C (A-G scale)

Warranty/Guarantee: 2-year parts and labour warranty (Smeg 2-year guarantee)

Technical Specification

• Required height over gas hobs: 550 mm (min)
• Required height over electric hobs: 550 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Pressure value: 0 Pa
• Outlet diameter: 120-125mm mm

Extraction Rates And Noise

• Noise level: 64 dBA
• Extraction rate: 350 m3/hr
• Extraction rate at first speed: 186 m³/hr
• Extraction rate at second speed: 276 m³/hr
• Extraction rate at third speed: 350 m³/hr
• Noise level at first speed: 54 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Filters

• Charcoal filter code: CHA15
• Aluminium grease filter
• Number of charcoal filters (optional): 1
• Ducting kit: AED51/53/54

Misc Information

• WEEE Category: 01

Optional Accessories

• Ducting kit code: AED 51/53/54
• Charcoal filter for re-circulation : CHA15 (pack of 1)

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Outlet diameter: 120mm mm

Energy

• Energy rating: B

Lighting

• Type of light: LED
• Wattage of lights: 4W

Filters

• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 01

Technical Specification

• Rated electrical power: 268 W
• Motor Input: 260 W
• Required height over CDA gas hobs: 650 mm (min)
• Required height over CDA electric hobs: 450 mm (min)
• Outlet diameter: 150 mm

Extraction Rates And Noise

• Noise level at fourth speed: 68 dBA
• Extraction rate at fourth speed: 695 m3/hr
• Extraction rate at first speed: 250 m³/hr
• Extraction rate at second speed: 330 m³/hr
• Extraction rate at third speed: 425 m³/hr
• Noise level at first speed: 48 dBA
• Noise level at third speed: 59 dBA
• Noise level 2: 53 dBA

Energy

• Energy rating: A
• Annual energy consumption: 58.7000 kWh

Lighting

• Wattage of light: 4.0000 W
• Lighting: 2 * LED

Filters

• Aluminium grease filter
• Number of charcoal filters: CHA42 Pack of 2
• Number of layers: 3

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Noise level: 60 dBA
• Extraction rate: 391 m3/hr
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Noise level: 61 dBA
• Extraction rate: 377 m3/hr
• Extraction rate at first speed: 224 m³/hr
• Extraction rate at second speed: 315 m³/hr
• Extraction rate at third speed: 377 m³/hr
• Noise level at first speed: 51 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 61 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Extraction rate: 391 m3/hr
• Noise level: 60 dBA
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01

Optional Accessories

• Ducting kit code: 120mm, AED 510/560
• Ducting kit code: 150mm, AED 610/660

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Extraction rate: 391 m3/hr
• Noise level: 60 dBA
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED610/660 or AED510/560ith adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Motor Input: 150 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 270 m³/hr
• Extraction rate at second speed: 340 m³/hr
• Extraction rate at third speed: 468 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 67.7000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Technical Specification

• Motor Input: 150 W
• Rated electrical power: 158 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 270 m³/hr
• Extraction rate at second speed: 340 m³/hr
• Extraction rate at third speed: 468 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 67.7000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Technical Specification

• Motor Input: 150 W
• Rated electrical power: 158 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 280 m³/hr
• Extraction rate at second speed: 360 m³/hr
• Extraction rate at third speed: 475 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 71.0000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Technical Specification

• Rated electrical power: 54 W
• Power supply: 3 A
• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Noise level at third speed: 66 dBA
• Extraction rate at third speed: 220 m3/hr
• Noise level at second speed: 63 dBA
• Noise level at first speed: 55 dBA
• Extraction rate at second speed: 165 m³/hr
• Extraction rate at first speed: 137 m³/hr

Energy

• Energy rating: B

Lighting

• Number of lights: 2
• Type of light: LED
• Wattage of lights: 2W

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 1

Technical Specification

• Rated electrical power: 54 W
• Power supply: 3 A
• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Extraction rate at third speed: 200 m3/hr
• Noise level at third speed: 64 dBA
• Noise level at second speed: 169 dBA
• Extraction rate at first speed: 133 m3/hr
• Noise level at second speed: 60 dBA
• Noise level at first speed: 56 dBA

Energy

• Energy rating: C

Lighting

• Number of lights: 2
• Type of light: LED
• Wattage of lights: 2W

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 1

Zone Information

• Number of zones: 4 plus 1 bridging zone
• Front left: 210mm, 2kW or 3kW with booster
• Front right: 180mm, 1.6kW or 2.5kW with booster
• Rear left: 160mm, 1.4kW or 2.1kW with booster
• Rear right: 180mm, 1.6kW or 2.5kW with booster

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over gas hobs: 550 mm (min)
• Required height over electric hobs: 550 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Pressure value: 0 Pa
• Outlet diameter: 120-125mm mm

Extraction Rates And Noise

• Noise level: 64 dBA
• Extraction rate: 350 m3/hr
• Extraction rate at first speed: 186 m³/hr
• Extraction rate at second speed: 276 m³/hr
• Extraction rate at third speed: 350 m³/hr
• Noise level at first speed: 54 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Filters

• Charcoal filter code: CHA15
• Aluminium grease filter
• Number of charcoal filters (optional): 1
• Ducting kit: AED51/53/54

Misc Information

• WEEE Category: 01

Technical Specification

• Required height over gas hobs: 550 mm (min)
• Required height over electric hobs: 550 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Pressure value: 0 Pa
• Outlet diameter: 120-125mm mm

Extraction Rates And Noise

• Noise level at first speed: 54 dBA
• Extraction rate at third speed: 350 m3/hr
• Noise level at second speed: 60 dBA
• Extraction rate at first speed: 186 m³/hr
• Extraction rate at second speed: 276 m³/hr
• Noise level at third speed: 64 dBA

Filters

• Charcoal filter code: CHA15
• Aluminium grease filter
• Number of charcoal filters (optional): 1
• Ducting kit: AED51/53/54

Misc Information

• WEEE Category: 01

Technical Specification

• Mains lead length: 1.5 m
• Rated electrical power: 164 W
• Required height over gas hobs: 650 mm (min)
• Required height over electric hobs: 450 mm (min)
• Outlet diameter: 150 mm

Extraction Rates And Noise

• Extraction rate at fourth speed: 730 m3/hr
• Noise level at fourth speed: 68 dBA
• Extraction rate at first speed: 290 m³/hr
• Extraction rate at second speed: 390 m³/hr
• Extraction rate at third speed: 500 m³/hr
• Noise level at first speed: 48 dBA
• Noise level at second speed: 55 dBA
• Noise level at third speed: 59 dBA

Energy

• Energy rating: A+++
• Annual energy consumption: 25.0000 kWh

Lighting

• Lighting: LED

Filters

• Charcoal filter code: CHA42

Misc Information

• WEEE Category: 1

Functions

• Extraction rate at first speed: 260m³/hr
• Noise level at first speed: 50dBA
• Extraction rate at second speed: 375m³/hr
• Noise level at second speed: 57dBA
• Extraction rate at third speed: 495m³/hr
• Noise level at third speed: 62dBA
• Extraction rate at fourth speed: 660m³/hr
• Noise level at fourth speed: 67dBA

Technical

• Outlet diameter: 150mm
• Required height over gas hobs: 650mm
• Required height over electric hobs: 450mm
• Energy rating: A
• Charcoal filter code: CHA42
• Energy usage per annum: 51kWh

Optional Accessories

• Ducting kit code: AED 51/53/54
• Charcoal filter for re-circulation : CHA15 (pack of 1)
• Aluminium grease filter: GRE3M

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Outlet diameter: 120mm mm

Lighting

• Type of light: LED
• Wattage of lights: 4W

Filters

• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 01

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Extraction rate: 391 m3/hr
• Noise level: 60 dBA
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 150mm

Extraction Rates And Noise

• Extraction rate at first speed: 305 m3/hr
• Noise level at first speed: 51 dBA
• Extraction rate at second speed: 415 m3/hr
• Noise level at second speed: 60 dBA
• Extraction rate at third speed: 614 m3/hr
• Noise level at third speed: 65 dBA

Energy

• Energy rating: A++

Lighting

• Lighting: 2 x 1W
• Type of light: LED

Filters

• Aluminium grease filter
• Charcoal filter code: CHA12

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Noise level: 60 dBA
• Extraction rate: 391 m3/hr
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Motor Input: 150 W
• Rated electrical power: 158 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 280 m³/hr
• Extraction rate at second speed: 360 m³/hr
• Extraction rate at third speed: 475 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Annual energy consumption: 71 kWh
• Energy rating: C

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Aluminium grease filter
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Optional Accessories

• Ducting kit
• Charcoal filter for re-circulation : CHA39 x 1

Technical Specification

• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Noise level at third speed: 60 dBA
• Extraction rate at third speed: 197 m3/hr
• Extraction rate at first speed: 134 m3/hr
• Extraction rate at second speed: 162 m3/hr
• Noise level at second speed: 58 dBA
• Noise level at first speed: 53 dBA

Energy

• Energy rating: C

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over CDA gas hobs: 650 mm (min)
• Required height over electric hobs: 450 mm (min)
• Outlet diameter: 150 mm

Extraction Rates And Noise

• Extraction rate at first speed: 218 m3/hr
• Noise level at fourth speed: 66 dBA
• Extraction rate at second speed: 323 m3/hr
• Extraction rate at fourth speed: 540 m3/hr
• Noise level at second speed: 53 dBA
• Noise level at third speed: 64 dBA
• Extraction rate at third speed: 439 m3/hr
• Noise level at first speed: 45 dBA

Energy

• Energy rating: A

Lighting

• Type of light: LED

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Charcoal filter code: CHA37 Pack of 2

Misc Information

• WEEE Category: 1
