CDA Appliances

Technical Specification

• Motor Input: 150 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 270 m³/hr
• Extraction rate at second speed: 340 m³/hr
• Extraction rate at third speed: 468 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 67.7000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Noise level: 60 dBA
• Extraction rate: 391 m3/hr
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01

Technical Specification

• Motor Input: 150 W
• Rated electrical power: 158 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 270 m³/hr
• Extraction rate at second speed: 340 m³/hr
• Extraction rate at third speed: 468 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 67.7000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Technical Specification

• Motor Input: 150 W
• Rated electrical power: 158 W
• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 150 mm
• Outlet position: Top

Extraction Rates And Noise

• Extraction rate at first speed: 280 m³/hr
• Extraction rate at second speed: 360 m³/hr
• Extraction rate at third speed: 475 m³/hr
• Noise level at first speed: 53 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C
• Annual energy consumption: 71.0000 kWh

Lighting

• Lighting: 2 x LED

Filters

• Charcoal filter code: CHA37
• Number of charcoal filters: 2

Misc Information

• WEEE Category: 1

Functions - Top Oven

• Oven light
• Conventional oven
• Warming oven
• Electric grill

Functions - Main Oven

• Oven light
• Defrost
• Fan oven

Accessories

• Flat oven shelves: 3
• Grill pan with grid: 1

Optional Accessories

• Glass oven tray: ACG20
• Pizza stone: ACG10

Technical Specification

• Top oven net capacity: 35 L
• Top oven gross capacity: 39.0000 L
• Bottom oven net capacity: 0 L
• Main oven net capacity: 59 L
• Main oven gross capacity: 60 L
• Rated electrical power: 4.3000 kW
• Power supply: 20 A
• Mains cable: No

Energy

• Energy efficiency class - top oven: A
• Energy efficiency class - lower oven: A
• Size of cavity classification: M

Lighting

• Interior rear halogen lights
• Type of light: 25W Halogen lights
• Number of lights: 2

Door Features

• Double glazed doors
• Number of glasses in door: 2
• Removable doors
• Removable inner door for easy cleaning: Removable inner door glass for easy cleaning

Misc Information

• WEEE Category: 1

Functions - Top Oven

• Oven light
• Conventional oven
• Warming oven
• Electric grill

Functions - Main Oven

• Oven light
• Defrost
• Fan oven

Accessories

• Flat oven shelves: 3
• Grill pan with grid: 1

Technical Specification

• Top oven net capacity: 35 L
• Top oven gross capacity: 39.0000 L
• Bottom oven net capacity: 0 L
• Main oven net capacity: 59 L
• Main oven gross capacity: 60 L
• Rated electrical power: 4.3000 kW
• Power supply: 20 A
• Mains cable: No

Energy

• Energy efficiency class - top oven: A
• Energy efficiency class - lower oven: A
• Energy rating conventional: Top oven - 0.66 kW
• Energy rating forced air: Bottom oven - 0.75 kW
• Size of cavity classification: M

Lighting

• Interior rear halogen lights
• Type of light: 25W Halogen lights
• Number of lights: 2

Door Features

• Double glazed doors
• Number of glasses in door: 2
• Removable doors
• Removable inner door for easy cleaning: Removable inner door glass for easy cleaning

Misc Information

• WEEE Category: 1

Functions - Top Oven

• Oven light
• Conventional oven
• Warming oven
• Electric grill

Functions - Main Oven

• Oven light
• Defrost
• Fan oven

Accessories

• Flat oven shelves: 3
• Grill pan with grid: 1

Optional Accessories

• Glass oven tray: ACG20
• Pizza stone: ACG10

Technical Specification

• Top oven net capacity: 35 L
• Top oven gross capacity: 35.0000 L
• Bottom oven net capacity: 50 L
• Rated electrical power: 4.3000 kW
• Power supply: 20 A
• Mains cable: No

Energy

• Energy efficiency class - top oven: A
• Energy efficiency class - lower oven: A
• Energy rating conventional: Top oven - 0.6 kW
• Energy rating forced air: Main oven - 0.66 kW
• Size of cavity classification: M

Lighting

• Interior rear halogen lights
• Type of light: 25W Halogen lights
• Number of lights: 2

Door Features

• Double glazed doors
• Number of glasses in door: 2
• Removable doors

Misc Information

• WEEE Category: 1

Optional Accessories

• Ducting kit
• Charcoal filter for re-circulation : CHA39 x 1

Technical Specification

• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 650 mm (min)
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Noise level at third speed: 60 dBA
• Extraction rate at third speed: 197 m3/hr
• Extraction rate at first speed: 134 m3/hr
• Extraction rate at second speed: 162 m3/hr
• Noise level at second speed: 58 dBA
• Noise level at first speed: 53 dBA

Energy

• Energy rating: C

Misc Information

• WEEE Category: 1

Freezer Features

• 4 star rating
• Fast freeze/ super freeze
• Frost free
• 3 storage compartments
• 1 ice cube tray
• Storage compartments: 2 Drawers + 1 Flap + 2 Shelves

Technical Specification

• Noise efficiency class: C
• Fixed hinges
• Fridge useable capacity: 179 L net
• Freezer useable capacity: 63 L net
• Total useable capacity: 242 L net
• Noise level: 41 dBA
• Climate class: N-ST-T
• Cooling system: Air Flow in Fridge and NoFrost in Freezer
• Power cable length: 220 cm
• Refrigerant type: R600a
• UK plug
• Voltage/frequency: 220-240V/50 Vac/Hz

Energy

• Energy consumption per annum: 218 kW.h
• Energy rating: E

Misc Information

• WEEE Category: 12

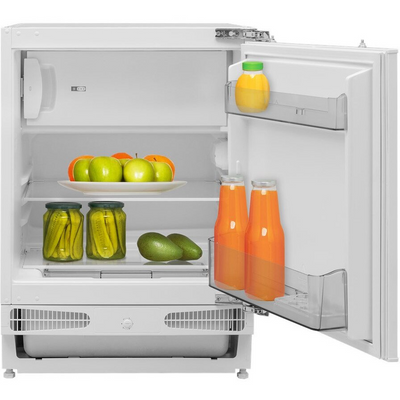

Technical Specification

• Noise efficiency class: C
• Fixed hinges
• Refrigeration type: R600a
• Fridge useable capacity: 97 L net
• Ice box useable capacity: 17 L net
• Total useable capacity: 114 L net
• Noise level: 39 dBA
• Climate class: SN
• UK plug fitted
• Power cable length: 220 cm
• Voltage/frequency: 220-240V/50 Vac/Hz

Energy

• Energy consumption per annum: 149 kW.h
• Energy rating: E

Misc Information

• WEEE Category: 12

Technical Specification

• Noise efficiency class: A
• Brushless Motor: Yes
• UK plug
• Rated electrical power: 1950.0000 kW
• Noise level - spin: 72 dBA
• Mains lead length: 1500.0000 mm

Energy

• Energy consumption per 100 cycles: 44 kwh
• Water consumption per weighted cycle: 45 L
• Energy rating : A
• Spin rating: B

Programmes

• Programme 1: Rapid
• Programme 2: Fast
• Programme 3: Cotton
• Programme 4: Jeans
• Programme 5: Eco
• Programme 6: Cotton Intensive
• Programme 7: Rinse and Spin
• Programme 8: Spin
• Programme 9: Anti-Allergy
• Programme 10: Wool
• Programme 11: Delicate
• Programme 12: Mixed
• Programme 13: Synthetic
• Programme 14: Sport
• Programme 15: Cotton
• Programme 16: Mychoice

Misc Information

• WEEE Category: 1

Technical Specification

• Refrigerant charge: 25.0000 g
• Bottle storage: 38 (75cl Bordeaux bottles)
• Temperature range in right zone: 5-20 °C
• Temperature range in left zone: 5-20 °C
• Climate class: ST
• Power cable length: 1.8300 m
• Rated power supply: 220-240/50 Vac/Hz
• Refrigerant type: R600a

Energy

• Energy rating: G
• Noise level: 40 dB
• Noise level class: C
• Energy consumption per annum: 142 kW.h

Misc Information

• WEEE Category: 1

Technical Specification

• Refrigerant charge: 29.0000 g
• Temperature range in upper zone: 5-12 °C
• Temperature range in lower zone: 12-20 °C
• Bottle storage: 46 (75cl Bordeaux bottles)
• Climate class: ST
• Power cable length: 1.8300 m
• Rated power supply: 220-240/50 Vac/Hz
• Refrigerant type: R600a

Energy

• Noise level: 40 dB
• Energy rating: G
• Noise level class: C
• Energy consumption per annum: 131 kW.h

Misc Information

• WEEE Category: 1

Fitting Type: Freestanding
Energy Rating: G
Annual Energy Consumption: 259(kWh)
Guarantee: 2(year)
Reversible Doors: Yes
Number of Doors: 1 door(s)
Cord Length: 1.83 m
Temperature Alarm: Yes
Interior Light: Yes
Country of Origin: China
Number of Shelves: 6 shelves
Noise Level: 39 dB
Noise Emission: ClassC
Climate Class: ST
Number of Temperature Zones: 1
Temperature Range: 5 - 20 °C
Capacity: 58 L
Annual Energy Consumption: 128 kWh
AC Input Voltage: 220-240
VAC Input Frequency: 50 Hz

Technical Specification

• Refrigerant charge: 19.0000 g
• Bottle storage: 19 (75cl Bordeaux bottles)
• Temperature range: 5-20 °C
• Climate class: ST
• Power cable length: 1.8300 m
• Rated power supply: 220-240/50 Vac/Hz
• Refrigerant type: R600a

Energy

• Noise level: 39 dB
• Energy rating: G
• Noise level class: C
• Energy consumption per annum: 128 kW.h

Misc Information

• WEEE Category: 1

Technical Specification

• Maximum capacity: 20 kg
• Power supply required: 3 A
• Rated electrical power: .4400 kW max

Misc Information

• WEEE Category: 1

Technical Specification

• Required height over CDA gas hobs: 650 mm (min)
• Required height over electric hobs: 450 mm (min)
• Outlet diameter: 150 mm

Extraction Rates And Noise

• Extraction rate at first speed: 218 m3/hr
• Noise level at fourth speed: 66 dBA
• Extraction rate at second speed: 323 m3/hr
• Extraction rate at fourth speed: 540 m3/hr
• Noise level at second speed: 53 dBA
• Noise level at third speed: 64 dBA
• Extraction rate at third speed: 439 m3/hr
• Noise level at first speed: 45 dBA

Energy

• Energy rating: A

Lighting

• Type of light: LED

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Charcoal filter code: CHA37 Pack of 2

Misc Information

• WEEE Category: 1

Technical Specification

• Rated electrical power: 54 W
• Power supply: 3 A
• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Extraction rate at first speed: 137 m³/hr
• Extraction rate at second speed: 165 m³/hr
• Extraction rate at third speed: 220 m³/hr
• Noise level at first speed: 55 dBA
• Noise level at second speed: 63 dBA
• Noise level at third speed: 66 dBA

Energy

• Energy rating: B

Lighting

• Number of lights: 2
• Type of light: LED
• Wattage of lights: 2 W

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 1

Technical Specification

• Rated electrical power: 54 W
• Power supply: 3 A
• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Extraction rate at first speed: 133 m3/hr
• Extraction rate at second speed: 169 m3/hr
• Extraction rate at third speed: 200 m3/hr
• Noise level at first speed: 56 dBA
• Noise level at second speed: 60 dBA
• Noise level at third speed: 64 dBA

Energy

• Energy rating: C

Lighting

• Number of lights: 2
• Type of light: LED
• Wattage of lights: 2 W

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 1
